Product Information
Prices VAT INCLUDED

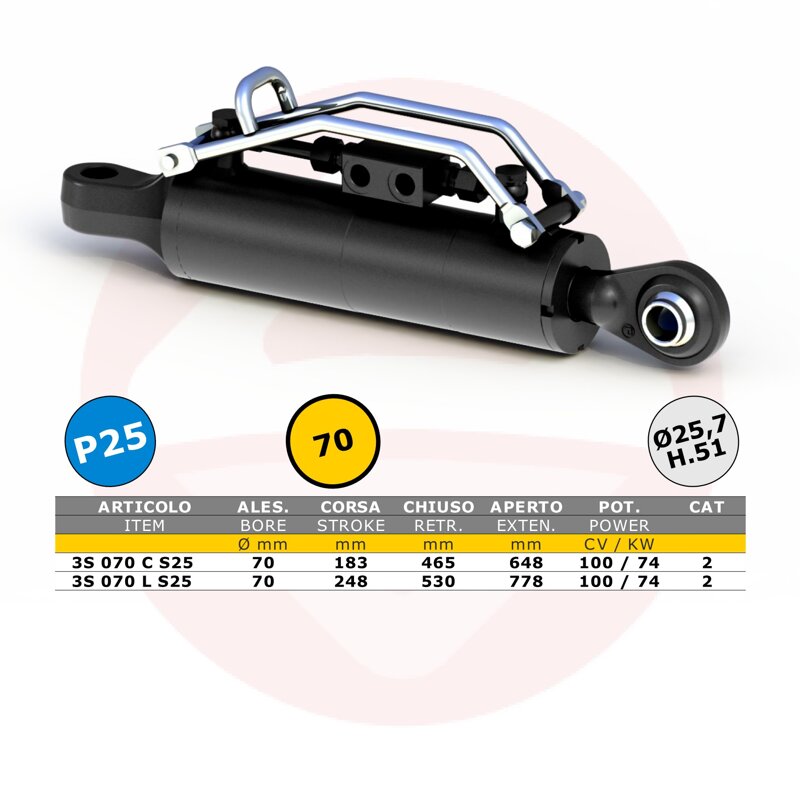

3S 070 - S25 | Third Hydraulic Point C70 for Joint Ø25.7 Cat.2 100HP
Third Hydraulic Points C70-C90 Cat.2, Home, Joint Ø25.7 L.51, Max 65HP 48kW, Max 100HP 74kW
€614.88 - €635.38
3S 070 - S25 | Third Hydraulic Point C70 for Joint Ø25.7 Cat.2 100HP - 3S 070 C S25 /25 Corto 475...658 009220
€614.88 (In Stock)
3S 070 - S25 | Third Hydraulic Point C70 for Joint Ø25.7 Cat.2 100HP - 3S 070 L S25 /25 Corto 540...788 009221
€614.88 (In Stock)
3S 070 - S25 | Third Hydraulic Point C70 for Joint Ø25.7 Cat.2 100HP - 3S 070 C S25 Corto 465...648 004280
€614.88 (In Stock)
3S 070 - S25 | Third Hydraulic Point C70 for Joint Ø25.7 Cat.2 100HP - 3S 070 C S25 Corto 465...648 004280
€614.88 (In Stock)
Third hydraulic point
- Bore 70 mm
- Maximum tractor power: Max. 100HP 74kW
- Tractor side joint connection Ø25.7 H.51
- Implement side joint connection Ø25.7 H.51
- Standard color: Black
- Mod. 3S070CS25/25 - 100HP 74kW
- Closed 475 mm Open 658 mm
- Stroke 183mm
- 560 x 88 x 164 mm - 13.90 Kg
- Mod. 3S070LS25/25 - 100HP 74kW
- Closed 540 mm Open 788 mm
- Stroke 248mm
- 625 x 88 x 164 mm - 13.90 Kg
- Mod. 3S070CS25 - 100HP 74kW
- Closed 465 mm Open 648 mm
- Stroke 183mm
- 536 x 88 x 164 mm - 13.80 Kg
- Mod. 3S070LS25 - 100HP 74kW
- Closed 530 mm Open 778 mm
- Stroke 248mm
- 601 x 88 x 157 mm - 15.50 Kg
Note:
- Dimensions in millimeters.
- The appearance of the products may differ from what is shown. The standard color for damped cylinders is Black RAL9005.
- We reserve the right to make changes without notice resulting from the continuous development of our products.
