Product Information
Prices VAT INCLUDED

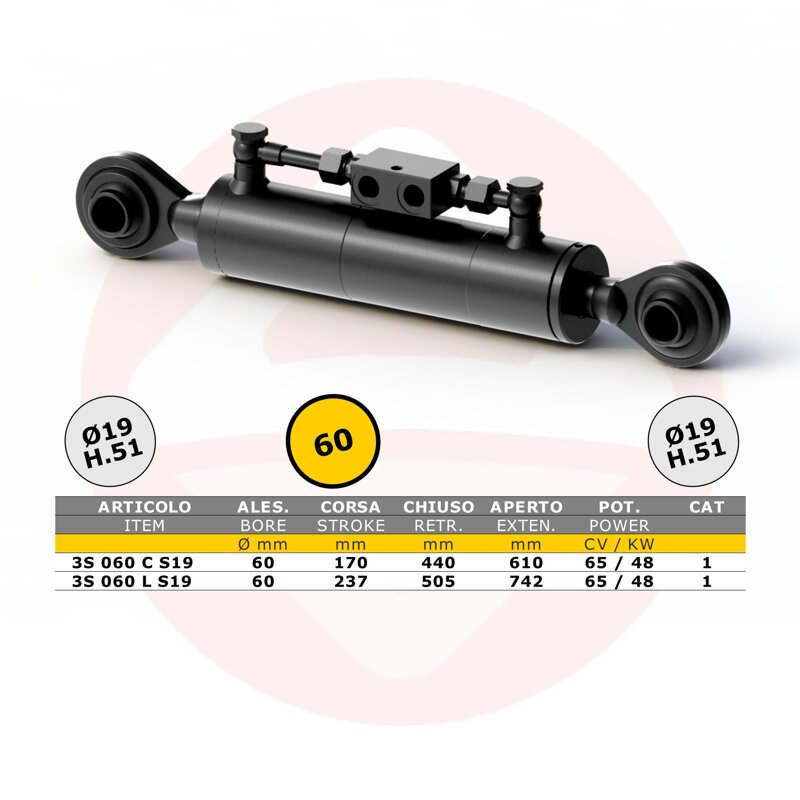

3S 060 - S19 | Third Hydraulic Point C60 with Joints Ø19.3 Cat.1 65HP
Third Hydraulic Points C60 Cat.1, Joint Ø19.3 L.51, Max 65HP 48kW
€361.43
3S 060 - S19 | Third Hydraulic Point C60 with Joints Ø19.3 Cat.1 65HP - 3S 060 C S19 Corto 440...610 009785
€361.43 (In Stock)
3S 060 - S19 | Third Hydraulic Point C60 with Joints Ø19.3 Cat.1 65HP - 3S 060 C S19 Corto 440...610 009785
€361.43 (In Stock)
Third hydraulic point
- Bore 60 mm
- Maximum tractor power: Max. 65HP 48kW
- Tractor side joint connection Ø19.3 H.51
- Implement side joint connection Ø19.3 H.51
- Standard color: Black
- Mod. 3S060CS19 - 65HP 48kW
- Closed 440 mm Open 610 mm
- Stroke 170mm
- 515 x 70 x 112 mm - 8.10 Kg
- Mod. 3S060LS19 - 65HP 48kW
- Closed 505 mm Open 742 mm
- Stroke 237mm
- 580 x 70 x 112 mm - 9.20 Kg
Note:
- Dimensions in millimeters.
- The appearance of the products may differ from what is shown. The standard color for damped cylinders is Black RAL9005.
- We reserve the right to make changes without notice resulting from the continuous development of our products.
