Product Information
Prices VAT INCLUDED

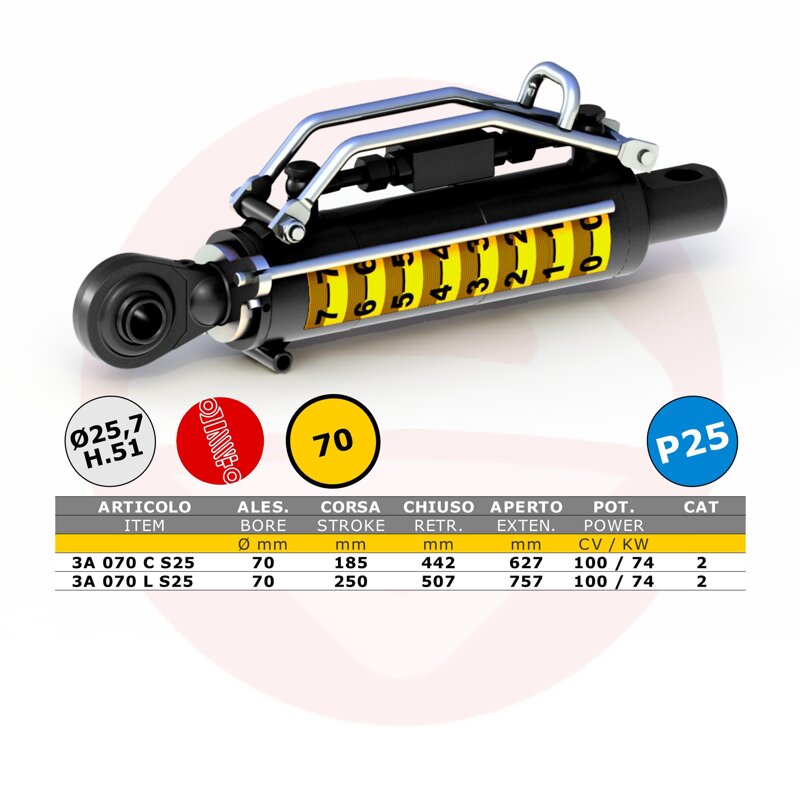

3A 070 - S25 | Third Hydraulic Damped Point C70 for Fork P25 and with Joint Ø25.7 Cat.2 100HP
Third Cushioned Points C70 Cat.2, Joint Ø25.7 L.51, Forcella P25, Max 65HP 48kW, Max 100HP 74kW, Short Size
€959.20 - €971.51
3A 070 - S25 | Third Hydraulic Damped Point C70 for Fork P25 and with Joint Ø25.7 Cat.2 100HP - 3A 070 C S25 Corto 442...627 009537
€959.20 (In Stock)
3A 070 - S25 | Third Hydraulic Damped Point C70 for Fork P25 and with Joint Ø25.7 Cat.2 100HP - 3A 070 C S25 Corto 442...627 009537
€959.20 (In Stock)
Third hydraulic point
- Cushioned
- Floating functionality
- Bore 70 mm
- Maximum tractor power: Max. 100HP 74kW
- Tractor side attachment for P25 type yoke
- Equipment side attachment Joint Ø25.7 L.51 Cat.2
- Standard color: Black
- Gas discharge screw included
- Mod. 3A070CS25 - 100HP 74kW
- Closed 442 mm Open 627 mm
- Stroke 185mm
- 511 x 103 x 176 mm - 13.60 Kg
- Mod. 3A070LS25 - 100HP 74kW
- Closed 507 mm Open 757 mm
- Stroke 250mm
- 576 x 103 x 170 mm - 15.70 Kg
Note:
- Dimensions in millimeters.
- The appearance of the products may differ from what is shown. The standard color for damped cylinders is Black RAL9005.
- We reserve the right to make changes without notice resulting from the continuous development of our products.
