Product Information
Prices VAT INCLUDED

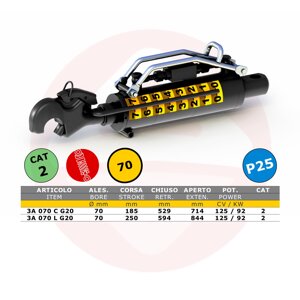

3A 070 - G20 | Third Hydraulic Damped Point C70 for Fork P25 and Quick Hitch Cat.2 125HP
Third Cushioned Points C70 Cat.2, Quick Hitch Cat.2, Forcella P25, Max 100HP 74kW, Max 125HP 92kW
€1049.40 - €1061.69
3A 070 - G20 | Third Hydraulic Damped Point C70 for Fork P25 and Quick Hitch Cat.2 125HP - 3A 070 C G20 Corto 529...714 009535
€1049.40 (In Stock)
3A 070 - G20 | Third Hydraulic Damped Point C70 for Fork P25 and Quick Hitch Cat.2 125HP - 3A 070 C G20 Corto 529...714 009535
€1049.40 (In Stock)
Third hydraulic point
- Cushioned
- Floating functionality
- Bore 70 mm
- Maximum tractor power: Max. 125HP 92kW
- Tractor side attachment for P25 fork
- Equipment side attachment Quick Hook Cat.2
- Standard color: Black
- Gas discharge screw included
- Mod. 3A070CG20 - 125HP 92kW
- Closed 529 mm Open 714 mm
- Stroke 185mm
- 606 x 96 x 174 mm - 14.60 Kg
- Mod. 3A070LG20 - 125HP 92kW
- Closed 594 mm Open 844 mm
- Stroke 250mm
- 671 x 96 x 169 mm - 16.30 Kg
Note:
- Dimensions in millimeters.
- The appearance of the products may differ from what is shown. The standard color for damped cylinders is Black RAL9005.
- We reserve the right to make changes without notice resulting from the continuous development of our products.
